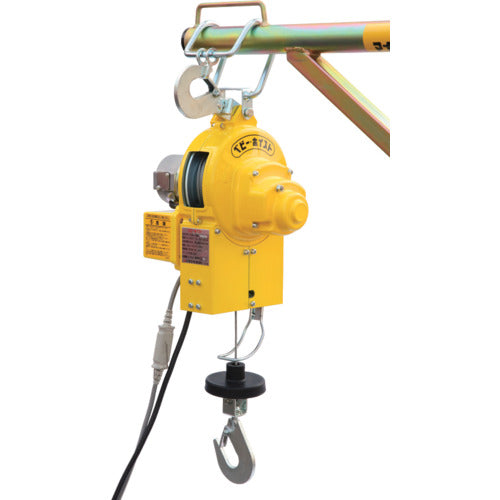

TKK Baby Hoist 60kg 15m BH-N315 1 unit

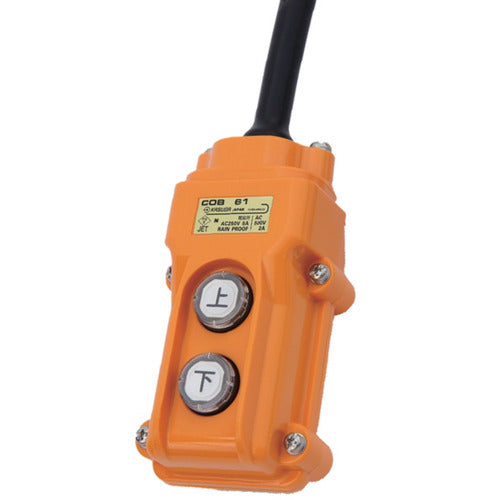

Catalog number: BH-N315 Features: ●Reverse winding caused by wire slack or sloppy winding is automatically stopped as soon as it occurs. ●The clutch protects the reducer when a shock load is applied. ●The wire exit is fixed by the guide sheave, reducing the swaying of the load. Specifications: ● Rated load (t): 0.06 ● Standard lifting height (m): 15 ● Winding speed (m/min): 24 to 27 ● Winding speed (m/min) 50Hz: 24 to 27 ● Winding speed (m/min) 60Hz: 24 to 27 ● Winding speed (m/min) low speed: 24 to 27 ● Winding motor capacity (kW): 0.3 ● Winding motor capacity (kW) 50Hz: 0.3 ● Winding motor capacity (kW) 60Hz: 0.3 ● Power supply (V): Single phase 100V ● Power cord length (m): 5 ● Safety devices: Upper limit switch, reverse winding prevention limit switch Set contents/accessories: ● Operation switch cord
