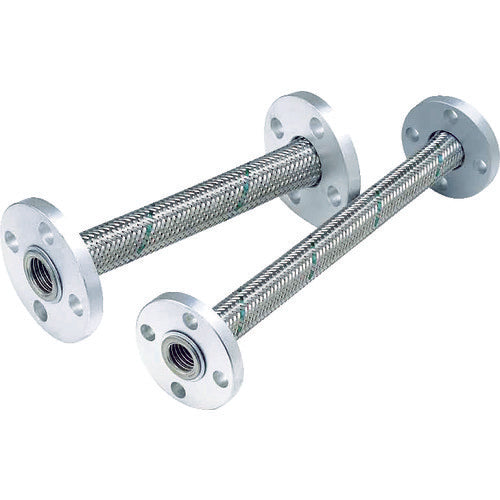

TOFLE flange non-welded type flex 10K SS400 20AX300L TF-48020-300 1 piece

Catalog number: TF-48020-300 Features: ●Ministry of Land, Infrastructure, Transport and Tourism specifications. ●High surface pressure ensures reliable sealing. ●No welding is required during assembly, so there is no material deterioration or rust caused by welding. ●For oil, gas (limited to non-corrosive fluids), and steam, we can separately use the welded flex TFR-3000. (Made to order) Applications: ●For absorbing misalignment and vibration in piping. Specifications: ●Nominal diameter A: 20 ●Nominal diameter B: 3/4 ●Total length (mm): 300 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0 to 100 ●Compatible fluids: cold and hot water, air Materials/Finish: ●Flexible section: Stainless steel (SUS304) ●Flange section: Steel (SS400) Notes: ●JIS standard non-asbestos packing can be used.
