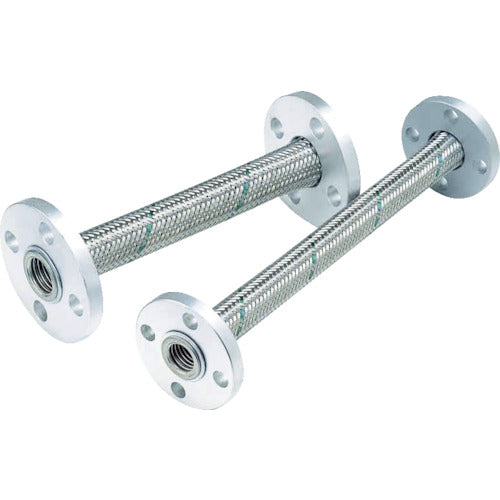

TOFLE flange non-welded type flex 10K SS400 20AX500L TF-48020-500 1 piece

Catalog number: TF-48020-500 Features: ● Specifications of the Ministry of Land, Infrastructure, Transport and Tourism. ● High surface pressure ensures reliable sealing. ● No welding is required during assembly, so there is no material deterioration or rust caused by welding. ● For oil, gas (limited to non-corrosive fluids), and steam, we can separately handle the welded flex TFR-3000. (Made to order) Uses: ● For absorbing misalignment and vibration in piping. Specifications: ● Nominal diameter A: 20 ● Nominal diameter B: 3/4 ● Total length (mm): 500 ● Maximum operating pressure (MPa): 1 ● Operating temperature range (℃): 0 to 100 ● Suitable fluids: cold and hot water, air Materials/Finish: ● Flex part: Stainless steel (SUS304) ● Flange part: Steel (SS400) Note: ● JIS standard non-asbestos packing can be used.
