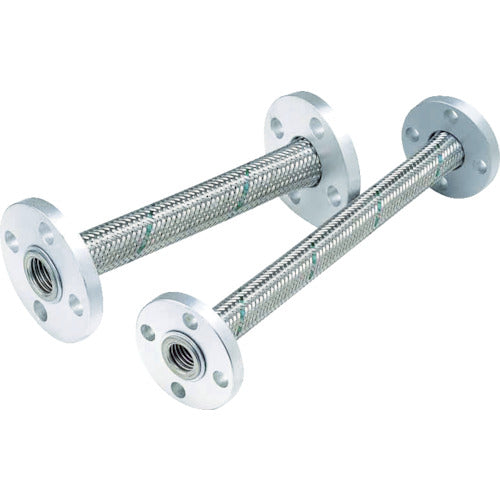

TOFLE flange non-welded type flex 10K SS400 25AX500L TF-48025-500 1 piece

Catalog number: TF-48025-500 Features: ● Specifications of the Ministry of Land, Infrastructure, Transport and Tourism. ● High surface pressure ensures a reliable seal. ● No welding is required during assembly, and there is no material deterioration or rust caused by welding. ● For oil, gas (limited to non-corrosive fluids), and steam, we can separately handle the welded flex TFR-3000. (Made to order) Uses: ● For absorbing misalignment and vibration in piping. Specifications: ● Nominal diameter A: 25 ● Nominal diameter B: 1 ● Total length (mm): 500 ● Maximum operating pressure (MPa): 1 ● Operating temperature range (℃): 0 to 100 ● Suitable fluids: cold and hot water, air Materials/Finish: ● Flex part: Stainless steel (SUS304) ● Flange part: Steel (SS400) Note: ● JIS standard non-asbestos packing can be used.
