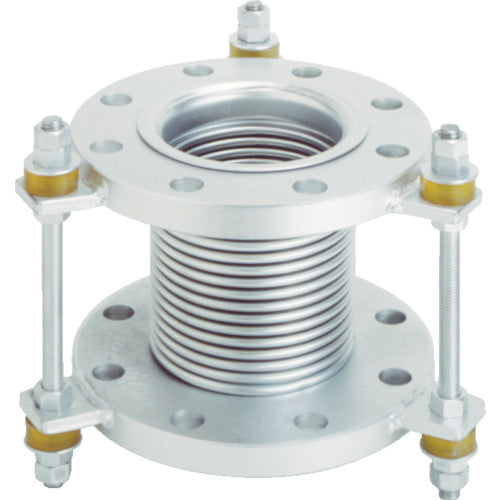

TOFLE flange non-welded vibration-proof joint 10K SS400 100AX150L VJ10K-100-150 1 piece

Catalog number: VJ10K-100-150 Features: ●Ministry of Land, Infrastructure, Transport and Tourism specifications. ●Two-layer bellows (inner layer SUS316L) is used, which significantly improves corrosion resistance and increases safety. ●By making the thin plate into a two-layer structure, flexibility is achieved and the vibration damping effect is increased. ●Assembled without welding, there is no material deterioration due to welding. Applications: ●For absorbing vibration in piping. Specifications: ●Nominal diameter A: 100 ●Nominal diameter B: 4 ●Total length (mm): 150 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0 to 80 ●Compatible fluid: cold and hot water Material/Finish: ●Flexible part: Stainless steel (outer layer: SUS304, inner layer: SUS316L) ●Flange part: Steel (SS400) Caution: ●Only use the included dedicated non-asbestos packing.
