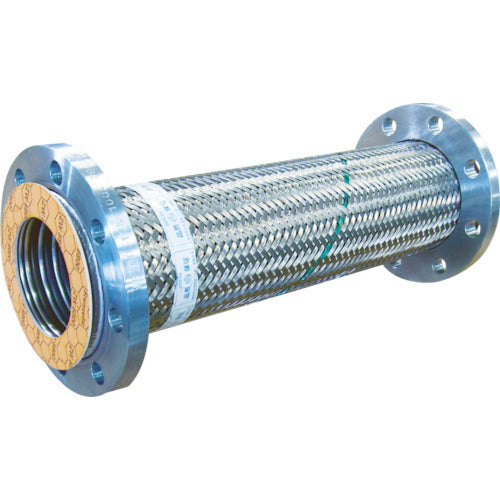

TOFLE Flexible Metal Hose Flangeless Welded Type Flexible 10K SS400 125A x 500L TF-23125-500 1 pc

Catalog number: TF-23125-500 Features: ●Ministry of Land, Infrastructure, Transport and Tourism specifications. ●Because the joints are welded and the effective length of the tube is long, it is advantageous for piping that is subject to vibration and repeated displacement. ●Since the liquid-contacting parts are made of stainless steel, they are resistant to rust and have excellent durability. ●For oil, gas (limited to non-corrosive fluids), and steam, we can separately handle the welded type flex TF-10000. (Made to order) Uses: ●For absorbing misalignment and vibration in piping. Specifications: ●Nominal diameter A: 125 ●Nominal diameter B: 5 ●Total length (mm): 500 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0 to 100 ●Compatible fluids: cold and hot water, air Materials/Finish: ●Flex part: Stainless steel (SUS304) ●Flange part: Steel (SS400) Caution: ●Only use the included dedicated non-asbestos packing.
