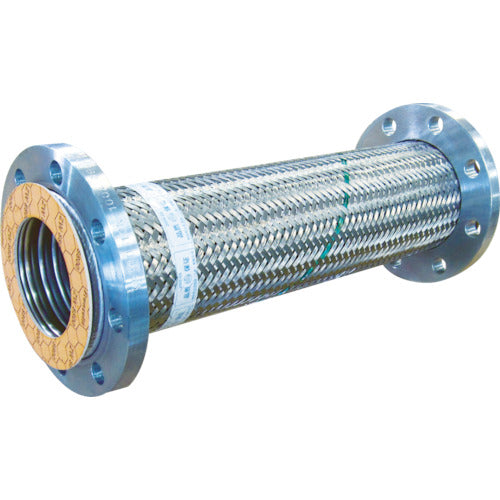

TOFLE Flexible Metal Hose Flangeless Welded Type Flexible 10K SS400 150A x 1000L TF-23150-1000 1 pc

Catalog number: TF-23150-1000 Features: ● Specifications of the Ministry of Land, Infrastructure, Transport and Tourism. ● The joints are welded and the effective length of the tube is long, making it advantageous for piping that vibrates and undergoes repeated displacement. ● The liquid-contacting parts are made of stainless steel, making them rust-resistant and durable. ● For oil, gas (limited to non-corrosive fluids), and steam, we can separately handle the welded flex TF-10000. (Made to order) Uses: ● For absorbing misalignment and vibration in piping. Specifications: ● Nominal diameter A: 150 ● Nominal diameter B: 6 ● Total length (mm): 1000 ● Maximum operating pressure (MPa): 1 ● Operating temperature range (℃): 0 to 100 ● Suitable fluids: cold and hot water, air Materials/Finish: ● Flex part: Stainless steel (SUS304) ● Flange part: Steel (SS400) Caution: ● Only use the included dedicated non-asbestos packing.
