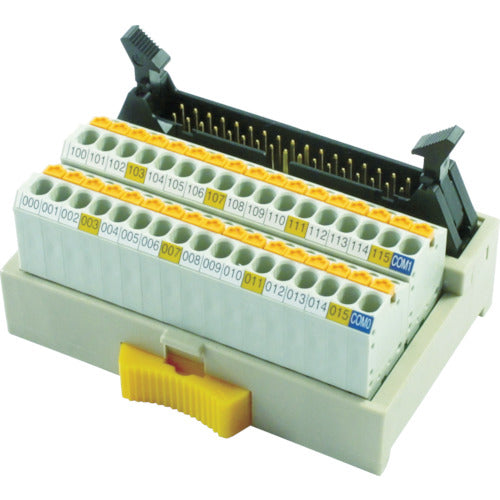

TOGI Spring lock type connector terminal block, 34 poles, PCX-1H34-TB34-K1, 1 piece

Catalog number: PCX-1H34-TB34-K1 Features: ●There is a button for opening and closing the wiring spring. By pressing the button, the spring can be easily opened and closed for wiring. ●Can be used with either a Phillips or flat head screwdriver. ●Can be used with either bar crimp terminals or bare wires. (Bar crimps have size restrictions.) Applications: ●Converts the 34-pin IO connector of a Keyence PLC to a 34-pin spring lock type terminal via a cable. (Please check compatible PLCs.) Specifications: ● Number of poles: 34 ● Length (mm): 46.8 ● Width (mm): 67.5 ● Height (mm): 47 ● Type: Input/output ● Spring-lock type 3.5 mm pitch terminal block ● Rated voltage: 50 V (125 V only for PCX-1H40-M, K/K-CPU) ● Rated current: 0.5 A (1 A only for PCX-1H40-M, K/K-CPU) ● Withstand voltage: 500 V/1 minute ● Ambient temperature during use: -15°C to +60°C (no freezing or condensation) Material/Finish: ● Intermediate plate: Nylon ● Case: Polybutylene terephthalate (PBT) ● Lock button: Duracon (POM) Note: ● M: Mitsubishi Electric, O: Omron, K: Keyence.
