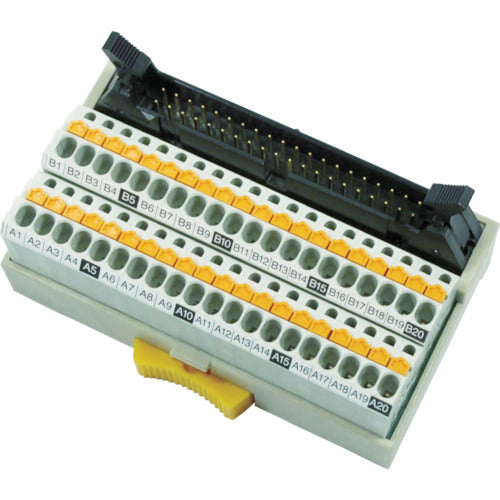

TOGI spring lock type connector terminal block, 40 poles, PCX-1H40, 1 piece

Catalog number: PCX-1H40 Features: * There is a button for opening and closing the wiring spring. By pressing the button, the spring can be easily opened and closed for wiring. * Can be used with either a Phillips or flat head screwdriver. * Can be used with either bar crimp terminals or bare wires. (Bar crimps have size restrictions.) Applications: * Converts the 40 PIN part of the IO connector of various PLCs to a 40 PIN spring lock type terminal via a cable. (Please check compatible PLC.) Specifications: ●Number of poles: 40 ●Length (mm): 46.8 ●Width (mm): 75 ●Height (mm): 47 ●Type: PCX series ●Spring lock type 3.5 mm pitch terminal block ●Rated voltage (V): 50V ●Rated current: 0.5A ●Withstand voltage (V): 500V/1 minute ●Ambient temperature during use: -15℃ to +60℃ (no freezing or condensation) Material/Finish: ●Intermediate plate: Nylon ●Case: Polybutylene terephthalate (PBT) ●Lock button: Duracon (POM) Note: ●M: Mitsubishi Electric, O: Omron, K: Keyence.
