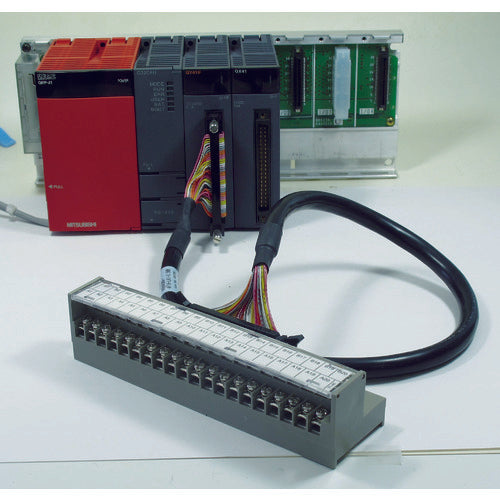

TOGI General-purpose connector terminal block PCN7-1H40 1 piece

Catalog number: PCN7-1H40 Features: ●The terminal block and connector are connected on the board, so there is no need to worry about incorrect wiring. ●The terminal number and connector number are wired one-to-one, allowing for flexible circuit design. Applications: ●A relay terminal that integrates a connector and a terminal block. ●Ideal as an interface for PLCs. Specifications: ●Color: Gray ●Number of poles: 40 ●Length (mm): 40 ●Width (mm): 149 ●Height (mm): 36 ●Type: Screw type ●Rated insulation voltage (V): AC DC125V ●Mounting pitch (mm): 110 ●Screw type 7mm pitch terminal block ●Rated voltage: AC, DC125V ●Rated current: 1 ●Withstand voltage: 600V/1 minute ●Ambient operating temperature: -15℃ to +60℃ ●Converts 40-pole connectors into terminal blocks regardless of manufacturer. ●Terminal number assignment A1 to A20 (lower row), B1 to B20 (upper row)
