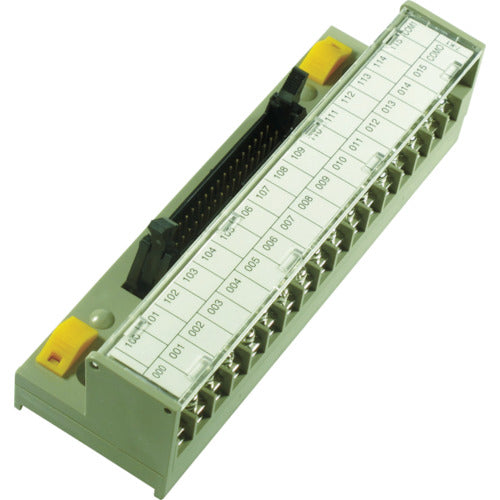

TOGI PLC compatible connector terminal block (PLC manufacturer Omron Yokogawa Electric) PCN7-1H40-TB34-O1 1 piece

Catalog number: PCN7-1H40-TB34-O1 Features: ●The terminal block and connector are connected on the board, so there is no need to worry about incorrect wiring. ●The terminal numbers are labeled to match those of each company's PLC. Applications: ●A relay terminal with an integrated connector and terminal block. ●Ideal as an interface for PLCs. Specifications: Color: Gray Number of poles: 34 Length (mm): 40 Width (mm): 128 Height (mm): 36 Type: Screw type Rated insulation voltage (V): AC DC24V Mounting pitch (mm): 108 Screw type 7mm pitch terminal block Rated voltage: DC24V Rated current: 0.5A Withstand voltage (V): 600V/1 minute Ambient temperature during use: -10℃ to +50℃ Compatible with Omron/Yokogawa Electric PLC (CJ1W, CS1W, C200H, C500, CQM1, FAM3R series) Input terminal numbers Terminal number assignment COM, m00 to m15 (lower row), NC, m+100 to m+115 (upper row) Note: M: Mitsubishi Electric, O: Omron, K: Keyence. Some PLCs are not supported. For Keyence cables, please contact the manufacturer.
