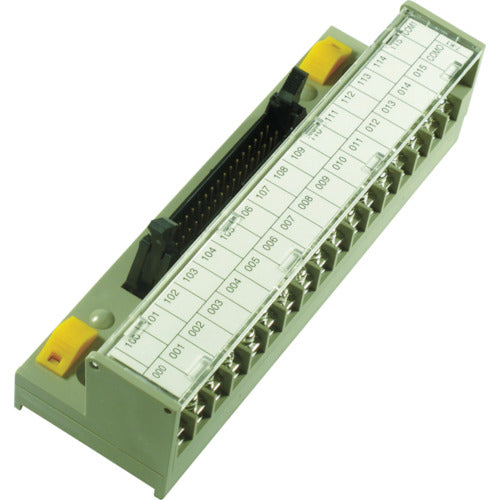

TOGI PLC compatible connector terminal block (PLC manufacturer: Mitsubishi Electric, Fuji Electric) PCN7-1H40-TB34-M2 1 piece

Catalog number: PCN7-1H40-TB34-M2 Features: ●The terminal block and connector are connected on the board, so there is no need to worry about incorrect wiring. ●The terminal numbers are written to match the terminal numbers of each company's PLC. Applications: ●A relay terminal with an integrated connector and terminal block. ●Ideal as an interface for PLCs. Specifications: Color: Gray Number of poles: 34 Length (mm): 40 Width (mm): 128 Height (mm): 36 Type: Screw type Rated insulation voltage (V): AC DC24V Mounting pitch (mm): 108 Screw type 7mm pitch terminal block Rated voltage: DC24V Rated current: 0.5A (1A only for K1/K-CPU) Withstand voltage (V): 600V/1 minute Ambient temperature: -10℃ to +50℃ Compatible with Mitsubishi Electric PLC (Q, AnS series) terminal numbers Terminal number assignments: 00-0F, 0V (lower row), 10-1F, +V (upper row) Attached name plate assignments: 00-0F, NC (lower row), 10-1F, COM (upper row) Note: M: Mitsubishi Electric, O: Omron, K: Keyence. Some PLCs are not supported. For Keyence cables, please contact the manufacturer.
