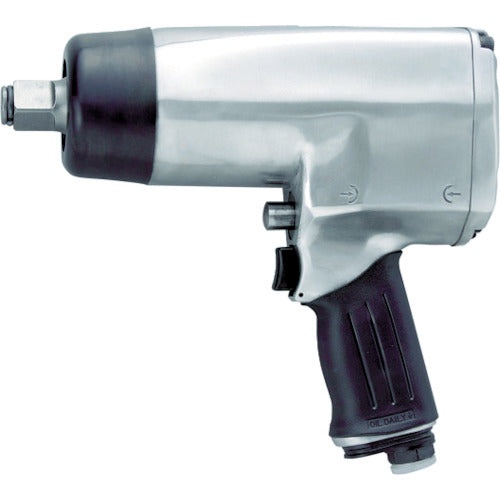

TOKU Lightweight Impact Wrench 3/4 MI-220H MI-220H 1 unit

Catalog number: MI-220H Features: ●The hammer pin moves up and down while drawing a circle with the pin clutch mechanism, and hits the anvil directly. ●The unique design maximizes the efficiency of continuous strikes, and the torque rise is excellent. ●This is the most popular clutch mechanism that continues to be a best-seller in the global market. Applications: ●From automobile assembly lines to light electrical equipment assembly and industrial machinery repairs. Specifications: ● Capacity bolt diameter (mm): 22 ● Socket drive size (mm): 19.0 ● Maximum tightening torque (N・m): 1100 ● No-load speed (min［［の−１］］): 5000 ● Air consumption (［［Ｍ３］］/min): 1.30 ● Hose attachment port: PT3/8 ● Exhaust: Downward ● Total length (mm): 244 ● Hammer type: Pink clutch ● Operating air pressure (MPa): 0.6 ● No-load speed (rpm): 5000 ● Capacity bolt diameter ● Operating air pressure: 0.6MPa ● Hose inner diameter: φ9.5mm Note: ● The tightening torque is an approximate value. Torque value will vary depending on the conditions.
