TOK Rotary Damper TD62 TD62W1-600 1 piece

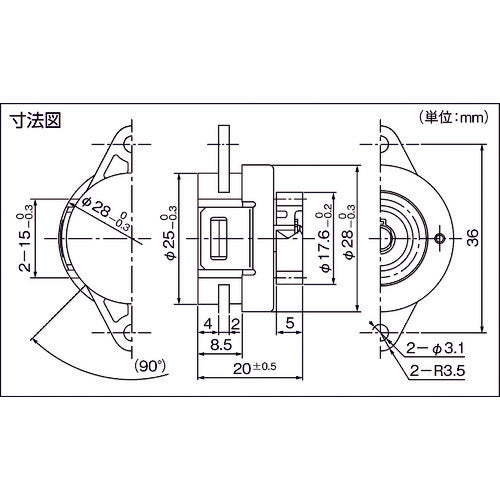

Catalog number: TD62W1-600 Features: ●A wide range of torques available. Applications: ●For slowing down the shutters of equipment. ●For slowing down equipment covers, etc. Specifications: ●Total length (mm): 20 ●Rated torque (N・m): 0.06 ●Number of screw holes: 2 ●Hole diameter (mm): 3.1 ●Rated torque (N・m) direction of rotation: CW・CCW ●External dimensions (mm): 28 ●Durability: 100,000 reciprocations (rack and pinion test) ●Specifications: 45 to 75 mN・m (at 30 rpm) ●Gear specifications ●Type: Standard spur gear ●Tooth shape: Involute, straight teeth ●Module: 1 ●Pressure angle: 20° Number of teeth: 18 ●Shift amount: +0.3 ●Operating temperature range: 0 to 40°C Materials/Finish: ●Housing, cap, gear: Polyacetal resin (POM) ●Shaft: Stainless steel Caution: ●Avoid using with a load that exceeds the set torque. ●Applying radial or thrust loads to the shaft may result in oil leakage or damage.
