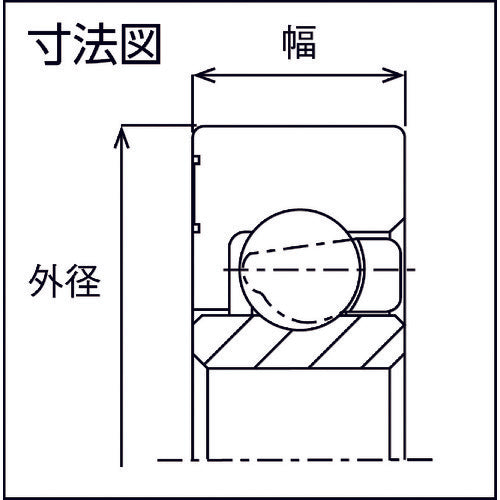

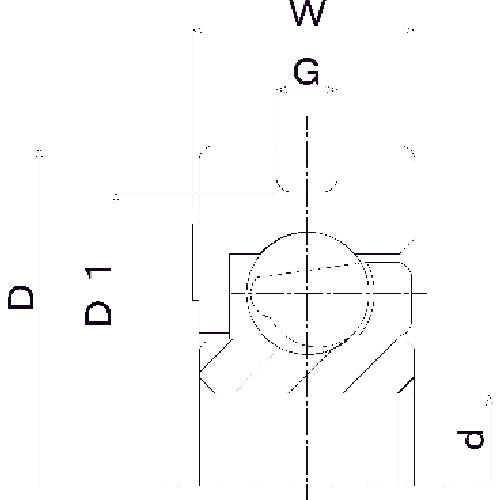

Catalog number: DH-19-H6-2 Features: ●By using plastic, it is difficult to damage the transported object. ●Due to the self-lubricating property of plastic, it is difficult to break immediately even if the grease runs out. Applications: ●Transport guide, etc. Specifications: ●Inner diameter (mm): 6 ●Outer diameter (mm): 22 ●Width (mm): 7 ●Groove bottom diameter (D1): 19 ●Operating temperature range (℃): 0 to 40 ●Allowable load: After 1 million times (300 revolutions per minute) by our durability test machine, the load that the change in radial clearance does not exceed our standard. Material / Finish: ●Outer race: POM ●Inner race: SUM ●Ball: SWCH ●Retainer: PP Caution: ●Be careful not to apply load in the axial direction.
