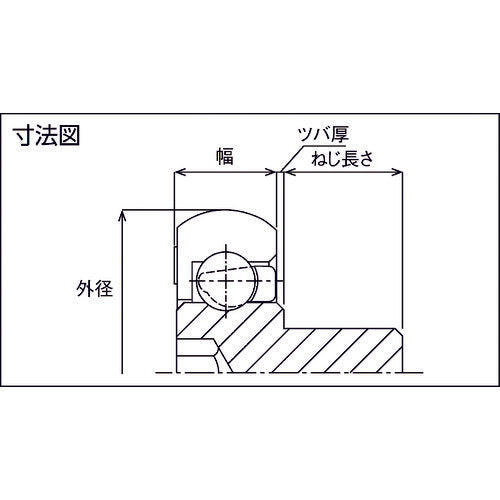

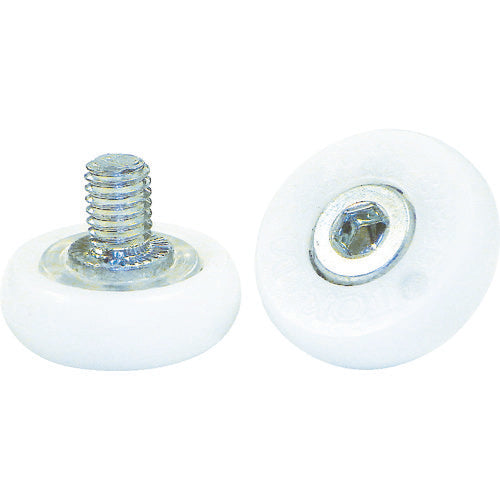

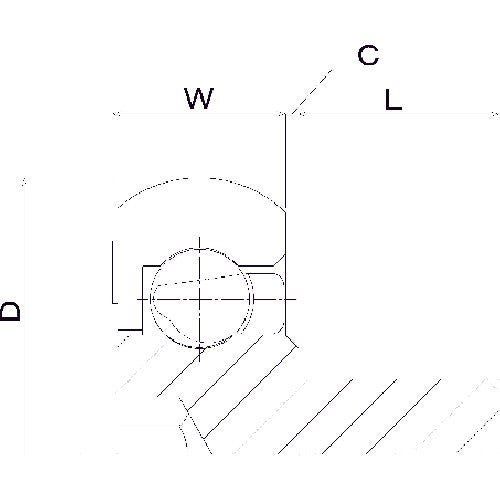

Catalog number: DO-22-B0.5-JH Features: ●By using a hexagonal wrench, it can be installed with a high tightening force. Applications: ●Transport guides, etc. Specifications: ●Outer diameter (mm): 22 ●Width (mm): 7 ●Approximate load (N): 196 ●Dimensions (mm) R: 5 ●Operating temperature range (℃): 0 to 40 ●Roller screw dimensions: M6 ●Thread length (mm): 8 ●Flange thickness (mm): 0.5 ●Hexagonal hole (mm): Nominal 4 ●Operating temperature range: 0 to 40℃ ●Allowable load: After 1 million rotations (300 rotations per minute) on our durability testing machine, the load at which the change in radial clearance does not exceed our standard. Material/Finish: ●Outer race: POM ●Inner race: SWCH ●Ball: SWCH ●Retainer: PP Caution: ●Be careful not to apply a load in the axial direction.
