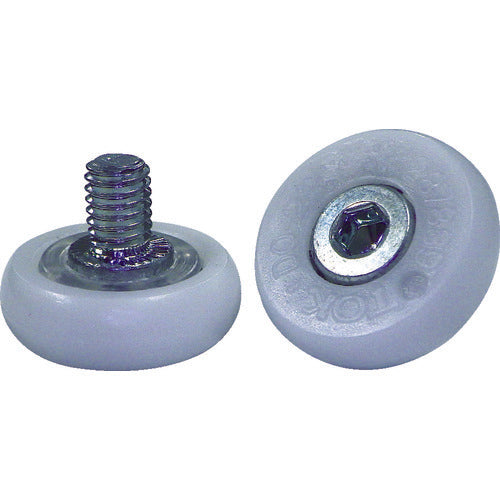

TOK Plastic Bearing DO-B-JH DO-26-B0.5-JH 1 piece

Catalog number: DO-26-B0.5-JH Features: ● By using a hexagonal wrench, it can be installed with a high tightening force. ● By using plastic, it is less likely to damage the transported object. ● Due to the self-lubricating properties of plastic, it is less likely to break immediately even if the grease runs out. Applications: ● Transport guides, etc. Specifications: ● Outer diameter (mm): 26 ● Width (mm): 7 ● Estimated load (N): 196 ● Dimensions (mm) R: 5 ● Operating temperature range (℃): 0 to 40 ● Roller screw dimensions: M6 ● Screw length (mm): 8 ● Flange thickness (mm): 0.5 ● Hexagonal hole (mm): Nominal 4 ● Operating temperature range: 0 to 40℃ ● Allowable load: According to our durability testing machine, after 1 million times (300 revolutions per minute), the change in radial clearance is a load that does not exceed our standard. Material/Finish: ●Outer race: POM ●Inner race: SWCH ●Ball: SWCH ●Retainer: PP Caution: ●Be careful not to apply a load in the axial direction.
