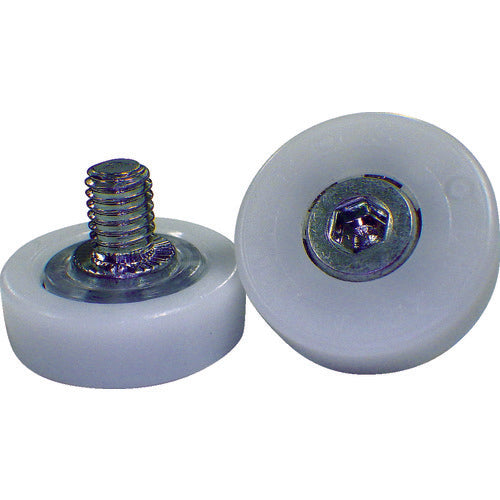

TOK Plastic Bearing DR-B-JH DR-35-B0.5-JH 1 piece

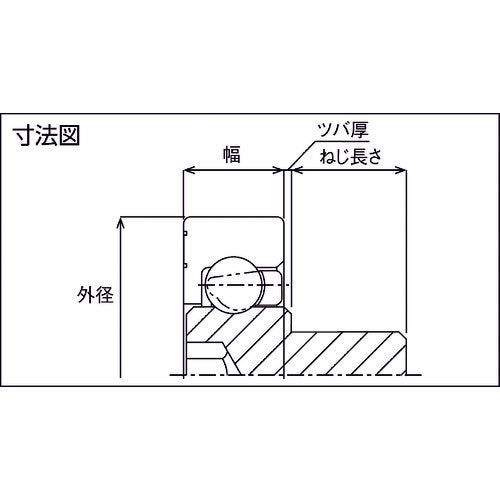

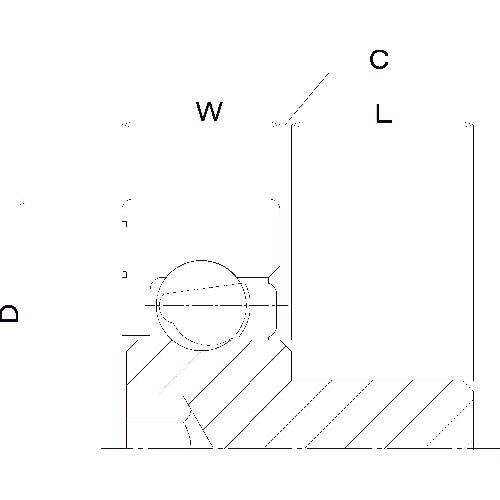

Catalog number: DR-35-B0.5-JH Features: ● By using a hexagonal wrench, it can be installed with a high tightening force. ● By using plastic, it is less likely to damage the transported object. ● Due to the self-lubricating properties of plastic, it is less likely to break immediately even if the grease runs out. Applications: ● Transport guides, etc. Specifications: ● Outer diameter (mm): 35 ● Width (mm): 7 ● Estimated load (N): 196 ● Operating temperature range (℃): 0 to 40 ● Roller screw dimensions: M6 ● Screw length (mm): 8 ● Flange thickness (mm): 0.5 ● Hexagonal hole (mm): Nominal 4 ● Operating temperature range: 0 to 40℃ ● Allowable load: The load that the change in radial clearance does not exceed our standard after 1 million times (300 revolutions per minute) by our durability test machine. Material/Finish: ●Outer race: POM ●Inner race: SWCH ●Ball: SWCH ●Retainer: PP Caution: ●Be careful not to apply a load in the axial direction.
