トップ工業（株）
TOP Monkey-type torque head for pipe fittings (applicable torque handle T-100NTL170) HY53-15TH170 1 piece
TOP Monkey-type torque head for pipe fittings (applicable torque handle T-100NTL170) HY53-15TH170 1 piece
Regular price
¥15,787
Regular price
Sale price
¥15,787
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

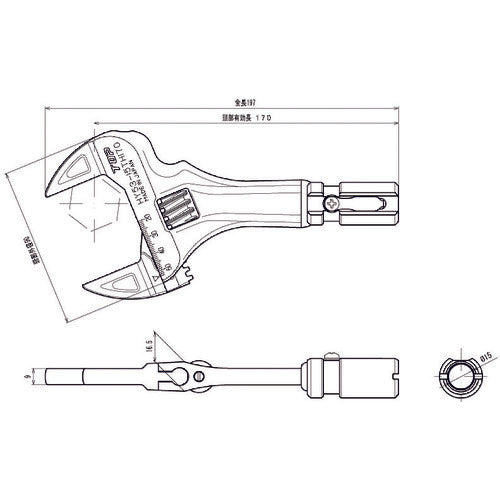

Catalog number: HY53-15TH170 Features: ●Monkey-type torque head for pipe fittings. ●The head is smaller than the TMW type, making it ideal for working in tight spaces. Applications: ●For cap nuts nominal 13, 20, and 25. ●Use with a torque handle to install nuts on pipe fittings and manage torque. Specifications: ●Compatible torque wrench: T-100NTL170 ●Total length (mm): 197 ●Connector inner diameter (mm): φ15 ●Thickness (mm): 16.5 ●Effective length (mm): 170 ●Compatible torque handle: T-100NTL170 ●Min. mouth width (mm): 20 ●Max. mouth width (mm): 53 ●Effective head length (mm): 170 ●Two-sided width dimension (mm): 20-53
