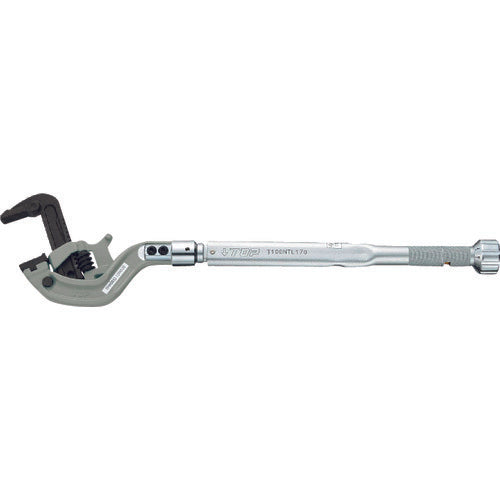

TOP TPW type torque wrench Minimum scale 0.5N・m Adjustment range 10 to 50N・m TPW0832-50NT 1 S

Catalog number: TPW0832-50NT Features: ●Ideal for torque management of piping joints and copper pipes. Applications: ●For installation and torque management of piping joints. Specifications: ●Torque adjustment range (N・m): 10-50 ●Minimum scale (N・m): 0.5 ●Total length (mm): 351 ●Two-sided width dimension (mm): 8-50 ●Insertion part dimension (mm): φ12 ●Load direction: Right ●Torque accuracy: ±8% ●Pipe size that can be attached: 8A-32A (φ8-φ50) Set contents/accessories: ●TPW-0832-12TH170, T-50NTL170 Caution: ●When connecting the torque head to the torque handle and other handles, insert while pressing the plunger pin. ●When removing, remove the torque head while pressing the attachment/detachment spring. ●When gripping the object, insert it firmly all the way. ●Always use the torque wrench in the direction of the arrow indicated on the main unit. ●Apply force perpendicular to the torque wrench.
