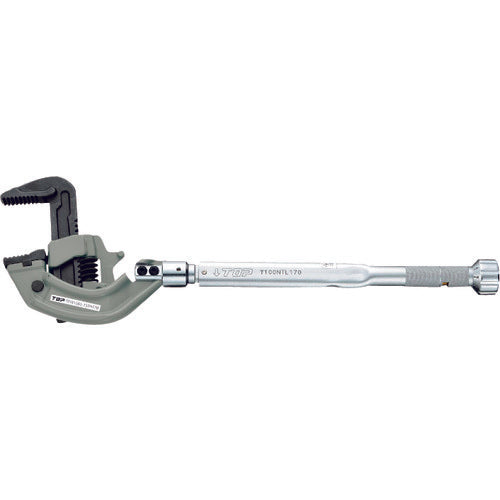

TOP TPW type torque wrench Minimum scale 0.5N・m Adjustment range 10 to 50N・m TPW1565-50NT 1 S

Catalog number: TPW1565-50NT Features: ● Compatible with pipe diameters of 15A to 65A (φ20 to φ88) Ideal for torque management of piping joints and copper pipes. Applications: ● For installation and torque management of piping joints. Specifications: ● Torque adjustment range (N・m): 10 to 50 ● Minimum scale (N・m): 0.5 ● Total length (mm): 351 ● Two-sided width dimension (mm): 20 to 88 ● Insertion part dimension (mm): φ12 ● Load direction: Right ● Torque accuracy: ±8% ● Compatible pipe nominal dimensions: 15A to 65A (φ20 to φ88) Set contents/accessories: ● TPW-1565-12TH170, T-50NTL170 Caution: ● When connecting the torque head to the torque handle and other handles, insert while pressing the plunger pin. ● When removing, remove while pressing the torque head attachment/detachment spring. ●When gripping an object, insert it all the way in firmly. ●Always use the torque wrench in the direction of the arrow indicated on the main unit. ●Apply force perpendicular to the torque wrench.
