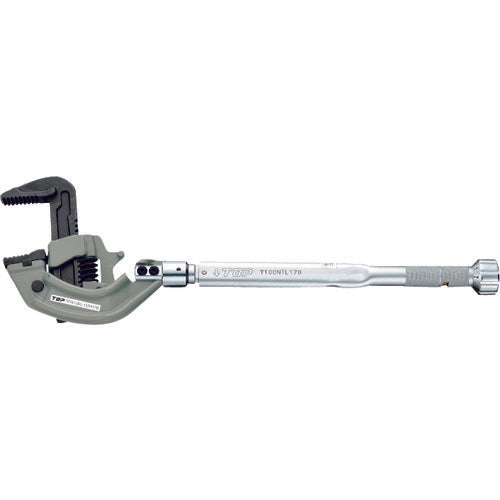

TOP TPW type torque wrench Minimum scale 1.0N・m Adjustment range 20 to 100N・m TPW1565-100NT 1 S

Catalog number: TPW1565-100NT Features: ● Compatible with pipe diameters of 15A to 65A (φ20 to φ88) Ideal for torque management of piping joints and copper pipes. Applications: ● For installation and torque management of piping joints. Specifications: ● Torque adjustment range (N・m): 20 to 100 ● Minimum scale (N・m): 1.0 ● Total length (mm): 501 ● Two-sided width dimension (mm): 20 to 88 ● Insertion part dimension (mm): φ15 ● Torque accuracy: ±8% ● Load direction: Right ● Compatible pipe nominal dimension: 15A to 65A (φ20 to φ88) Set contents/accessories: ● TPW-1565-15TH170, T-100NTL170 Caution: ● When connecting the torque head to the torque handle and other handles, insert while pressing the plunger pin. ● When removing, remove while pressing the torque head attachment/detachment spring. ●When gripping an object, insert it all the way in firmly. ●Always use the torque wrench in the direction of the arrow indicated on the main unit. ●Apply force perpendicular to the torque wrench.
