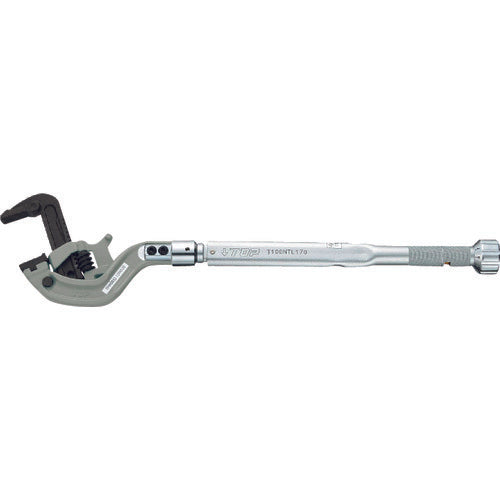

TOP TPW type torque wrench Minimum scale 2.0N・m Adjustment range 40～200N・m TPW0832-200NT 1 S

Catalog number: TPW0832-200NT Features: ● Compatible with pipe diameters of 8A to 32A (φ8 to φ50) Ideal for torque management of piping joints and copper pipes. Applications: ● For installation and torque management of piping joints. Specifications: ● Torque adjustment range (N・m): 40 to 200 ● Minimum scale (N・m): 2.0 ● Total length (mm): 615 ● Two-sided width dimension (mm): 8 to 50 ● Insertion part dimension (mm): φ18 ● Load direction: Right ● Torque accuracy: ±8% ● Compatible pipe nominal dimension: 8A to 32A (φ8 to φ50) Set contents/accessories: ● TPW-0832-18TH170, T-200NTL170 Caution: ● When connecting the torque head to the torque handle or handles, insert while pressing the plunger pin. ● When removing, remove while pressing the torque head attachment/detachment spring. ●When gripping an object, insert it all the way in firmly. ●Always use the torque wrench in the direction of the arrow indicated on the main unit. ●Apply force perpendicular to the torque wrench.
