TRIENS Air Hose Reel Inner Diameter 8mm x 6m SHS-306A 1 unit

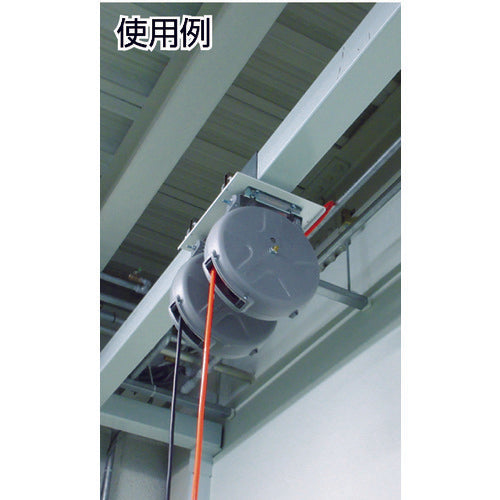

Catalogue number: SHS-306A Features: ●Easy hose replacement mechanism (fitting specifications). ●With swivel function as needed. (30° left and right) ●For supplying air when using pneumatic tools. ●Suitable for various assembly lines, maintenance factories, etc. ●Elbow allows for flexible handling of input hose. Applications: ●For supplying air when using pneumatic tools. ●Various assembly lines, maintenance factories, etc. Specifications: ● Hose inner diameter x outer diameter (mm): 8.0 x 12 ● Total hose length (m): 6 ● Primary installation side: Male swivel R3/8 ● Secondary installation side: Rc3/8 female thread ● Primary hose length (m): 1.0 ● Secondary hose length (m): 6.0 ● Maximum operating pressure (MPa): 1.4 ● Operating pressure (MPa): 1.4 ● Width (mm): 290 ● Depth (mm): 152 ● Height (mm): 314 ● Outer diameter (mm): 12 ● Installation type: Hanging/wall mounted ● Inner diameter (mm): 8.0 ● Compatible tube outer diameter (mm): 12 ● Color: Gray ● Hose material: Urethane ● Operating pressure: 1.4MPa ● Total hose length: 10m ● Primary side hose length (m): 1.0 ● Body dimensions (mm): 314 x 290 x 152 ● Body weight (kg): 3.5 ● Primary installation side: Male swivel R3/8 ● Secondary installation side: Rc3/8 female thread Material/Finish: * Hose: Urethane * Body cover: Resin Set contents/Accessories: * Mounting base set * Primary side hose 1m * Female coupler Note: * Products with "FA" at the end of the model number are brake type.
