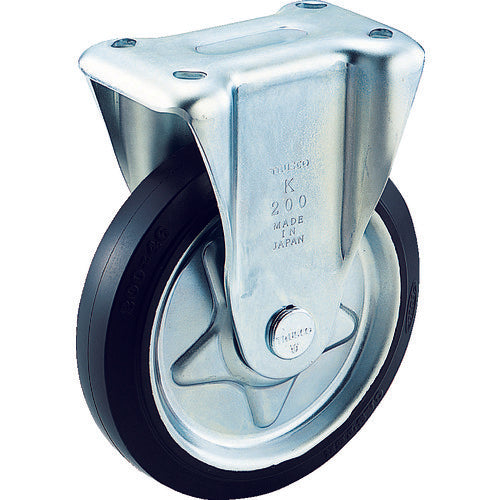

TRUSCO α Pressed Rubber Caster Fixed Φ200 TK-200C 1 pc

Catalog number: TK-200C Features: *The swivel section uses double bearings to achieve smooth rotation. *The wheel rotation section uses radial bearings for excellent durability. *The steel wheels have a distinctive star shape with a good design. Uses: ● For mounting on transport carts, etc. Specifications: ● Wheel diameter D (mm): 200 ● Type: Fixed type ● Allowable load (daN): 200 ● Allowable load (kgf): 204 ● Wheel width (mm): 46 ● Mounting height H (mm): 250 ● Mounting seat A (mm): 155 ● Mounting seat B (mm): 102 ● Mounting pitch X (mm): 112-119 ● Mounting pitch Y (mm): 56-63 ● Mounting hole diameter P (mm): 11.5 ● Caster diameter (mm): 200 ● Plate type ● Fixed type ● Radial bearing included Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Unichrome plating finish ● Wheels: Steel wheels, rubber
