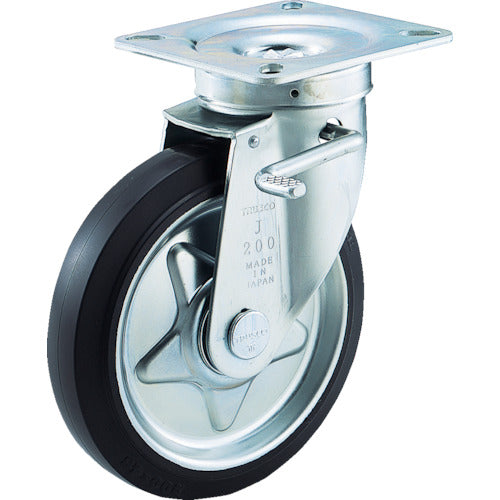

TRUSCO α Pressed Rubber Caster with Swivel Double Stopper Φ200 TJB-200C 1 pc

Catalog number: TJB-200C Features: *The swivel section uses double bearings to achieve smooth rotation. *The wheel rotation section uses radial bearings for excellent durability. *The steel wheel has a distinctive star shape with a good design. Uses: ● For mounting on transport carts, etc. Specifications: ● Wheel diameter D (mm): 200 ● Type: Free-wheeling (with double stoppers) ● Allowable load (daN): 200 ● Allowable load (kgf): 204 ● Wheel width (mm): 46 ● Mounting height H (mm): 250 ● Mounting seat A (mm): 140 ● Mounting seat B (mm): 140 ● Mounting pitch X (mm): 100-115 ● Mounting pitch Y (mm): 100-115 ● Mounting hole diameter P (mm): 11.5 ● Caster diameter (mm): 200 ● Mounting seat (mm): 140 x 140 ● Mounting pitch (mm): 100-115 x 100-115 ● Wheel material: Rubber ● Plate thickness (mm): 4.5 ● Plate type ● Radial bearing included ● Free-wheeling (with double stoppers) ● Locks the swivel part and wheel at the same time Material/Finish: Metal fittings: Steel; Metal fitting surface treatment: Unichrome plating; Wheels: Steel wheels, rubber
