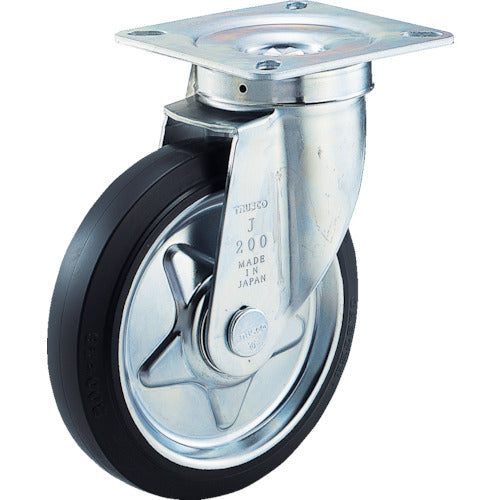

TRUSCO α Pressed Rubber Caster, Swivel, Φ130, TJ-130C, 1 pc

Catalog number: TJ-130C Features: *The swivel section uses double bearings to achieve smooth rotation. *The wheel rotation section uses radial bearings for excellent durability. *The steel wheel has a distinctive star shape with a good design. Uses: ● For mounting on transport carts, etc. Specifications: ● Wheel diameter D (mm): 130 ● Type: Free-wheeling ● Allowable load (daN): 140 ● Allowable load (kgf): 143 ● Wheel width (mm): 42 ● Mounting height H (mm): 177 ● Mounting seat A (mm): 110 ● Mounting seat B (mm): 110 ● Mounting pitch X (mm): 75-90 ● Mounting pitch Y (mm): 75-90 ● Mounting hole diameter P (mm): 11.0 ● Caster diameter (mm): 130 ● Mounting seat (mm): 110 x 110 ● Mounting pitch (mm): 75-90 x 75-90 ● Wheel material: Rubber ● Plate type ● Radial bearing included ● Free-wheeling Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Unichrome plating finish ● Wheels: Steel wheels, rubber
