TRUSCO Threaded Pipe Fitting SUS Hexagonal Hose Nipple 10A TSTHN-10A 1 pc

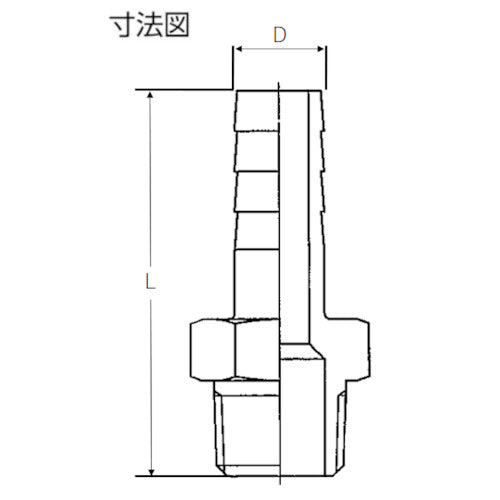

Catalog number: TSTHN-10A Features: ● Stainless steel screw-in fittings used in various equipment. Applications: ● For water, oil, and gas. Specifications: ● Nominal diameter A: 10 ● Nominal diameter B: 3/8 ● L (mm): 51.5 ● D (mm): 11 ● Maximum allowable pressure (MPa): 1.0 at room temperature ● Operating temperature range (℃): -20 to 220℃ ● Maximum operating pressure: 1.0MPa at room temperature ● Operating temperature range: -20 to 220℃ Material/Finish: ● Stainless steel (SCS13A) Caution: ● Please note that if dirt, dust, oil, etc. adhere to the product, performance cannot be guaranteed. ● Do not touch the threads with bare hands as you may cut your hands.
