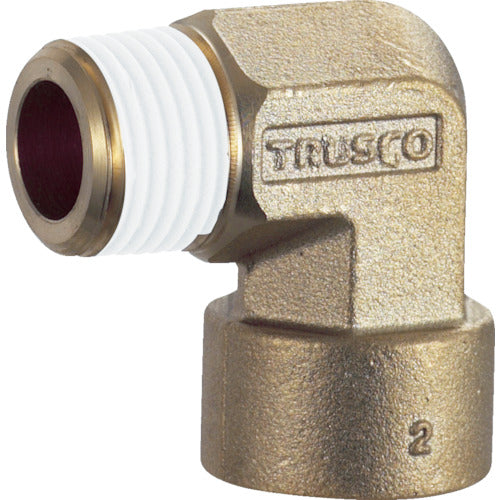

TRUSCO Threaded Joint Elbow R1/4-RC1/4 TN-12L 1 pc

TRUSCO Threaded Joint Elbow R1/4-RC1/4 TN-12L 1 pc

JAN：4989999313925 　
Construction and lighting supplies High pressure fitting (elbow) High Pressure Fittings Pipework Equipment TRUSCO Y-joint
¥499
¥499
Sale Sold out
Shipping calculated at checkout.

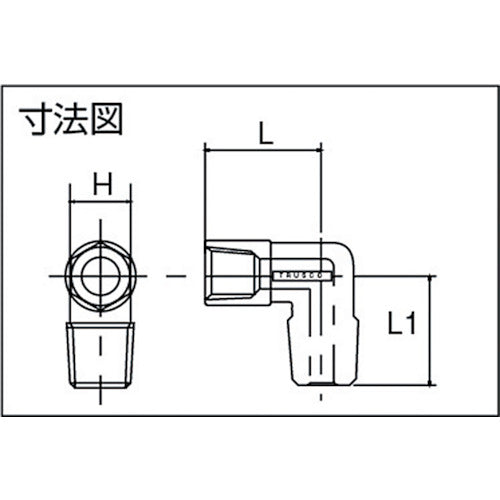

Catalog number: TN-12L Features: ● All sizes of male threads are sealed. Applications: ● For tight connections of pipes, pipe components, fluid equipment, etc. Specifications: ● L (mm): 25 ● H (mm): 14 ● L1 (mm): 25 ● Fluids used: water, air, oil ● Nominal diameter: R1/4 x Rc1/4 ● Fluid temperature: 0 to 100°C ● Operating pressure: 14MPa Material/Finish: ● Brass (C3771)
View full details
