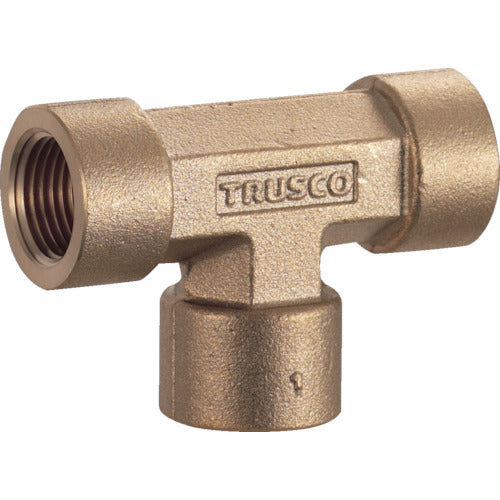

TRUSCO Threaded Fitting Tee RC1/4XRC1/4XRC1/4 TN-12T 1 pc

TRUSCO Threaded Fitting Tee RC1/4XRC1/4XRC1/4 TN-12T 1 pc

JAN：4989999314106 　
Construction and lighting supplies High Pressure Fittings High pressure fittings (tee) Pipework Equipment TRUSCO Y-joint
¥823
¥823
Sale Sold out
Shipping calculated at checkout.

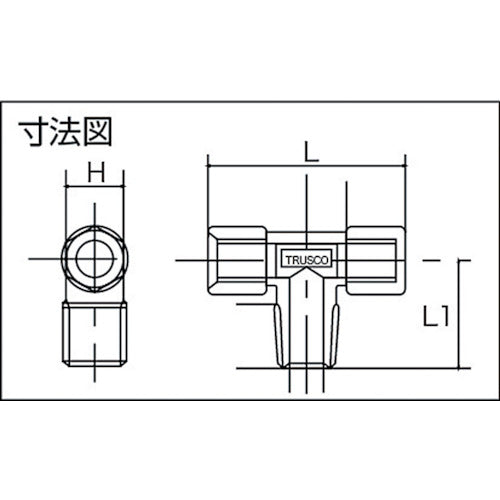

Catalog number: TN-12T Features: ● For receiving the outer thread of a threaded joint. Applications: ● For tight connections of pipes, pipe components, and fluid equipment. Specifications: ● Fluids used: Water, air, oil ● Nominal diameter: Rc1/4 x Rc1/4 x Rc1/4 ● Dimensions (mm) L: 50 ● Dimensions (mm) H: 14 ● Dimensions (mm) L1: 25 ● Fluid temperature: 0 to 100°C ● Operating pressure: 14MPa Material/Finish: ● Brass (C3771)
