TRUSCO Spring Washer Nut Trivalent White M12 10 Pieces Y022-0012 1 PK

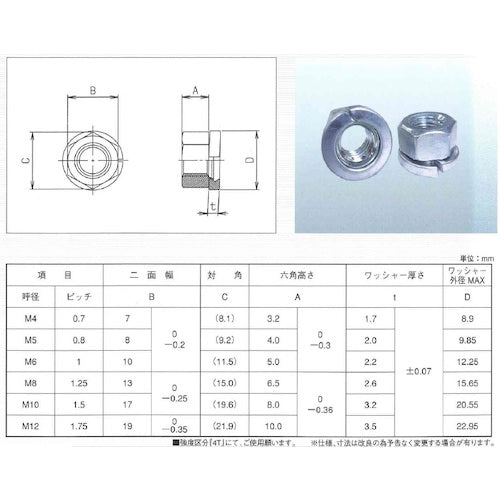

Catalog number: Y022-0012 Features: ● Spring washer prevents loosening. ● The nut and washer are integrated, improving the efficiency of tightening work. Specifications: ● Nominal diameter: M12 x 1.75 ● Two-sided width dimension (mm): 19 ● Height (mm): 10.0 ● Strength category: 4T ● Thread pitch (mm): 1.75 ● Dimension (mm) B: 19 ● Dimension (mm) C: 21.9 ● Dimension (mm) t: 3.5 ● Washer outer diameter (mm): 22.95 ● Dimension (mm) A: 10.0 ● Package: Bolt-on pack (blister) Material/Finish: ● Steel ● Surface treatment: Trivalent chromate finish (white)
