TRUSCO Spring Washer Nut Trivalent White M6 50 Pieces Y022-0006 1 PK

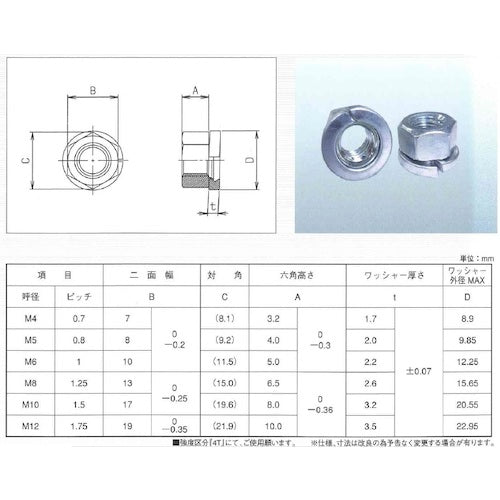

Catalog number: Y022-0006 Features: ● Spring washer prevents loosening. ● The nut and washer are integrated, improving the efficiency of tightening work. Specifications: ● Nominal diameter: M6 x 1.00 ● Two-sided width dimension (mm): 10 ● Height (mm): 5.0 ● Strength category: 4T ● Thread pitch (mm): 1 ● Dimension (mm) B: 10 ● Dimension (mm) C: 11.5 ● Dimension (mm) t: 2.2 ● Washer outer diameter (mm): 12.25 ● Dimension (mm) A: 5.0 ● Package: Bolt pack (blister) Material/Finish: ● Steel ● Surface treatment: Trivalent chromate finish (white)
