TRUSCO Spring Washer Nut Trivalent White M8 30 Pieces Y022-0008 1 PK

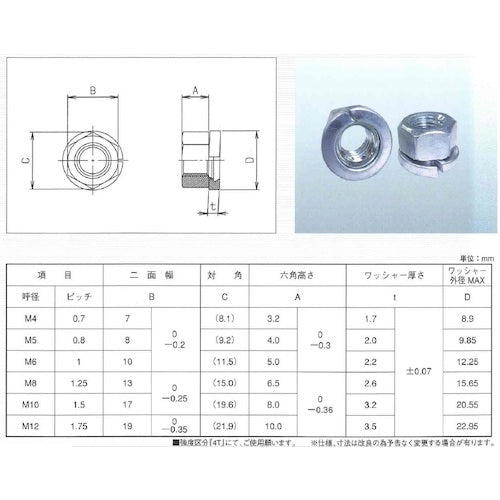

Catalog number: Y022-0008 Features: ● Spring washer prevents loosening. ● The nut and washer are integrated, improving the efficiency of tightening work. Specifications: ● Nominal diameter: M8 x 1.25 ● Two-sided width dimension (mm): 13 ● Height (mm): 6.5 ● Strength category: 4T ● Thread pitch (mm): 1.25 ● Dimension (mm) B: 13 ● Dimension (mm) C: 15.0 ● Dimension (mm) t: 2.6 ● Washer outer diameter (mm): 15.65 ● Dimension (mm) A: 6.5 ● Package: Bolt pack (blister) Material/Finish: ● Steel ● Surface treatment: Trivalent chromate finish (white)
