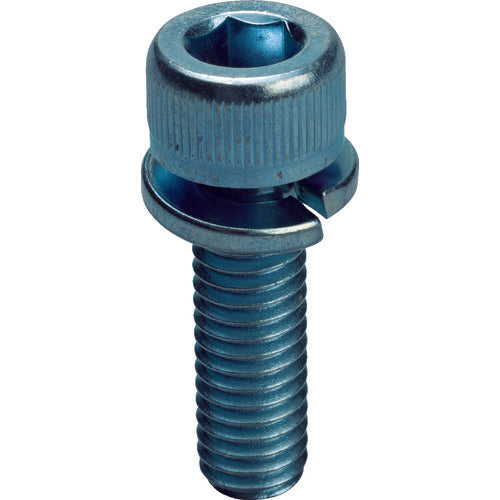

TRUSCO Spring washer assembled hexagon socket head bolt, white, M3 x 10, 38 pieces, Y15S-0310, 1 PK

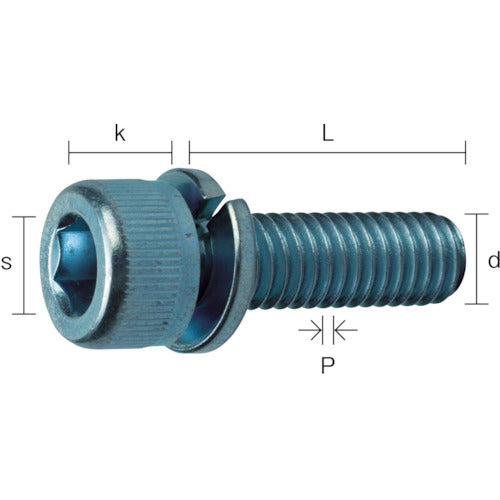

Catalog number: Y15S-0310 Features: ● Eliminates the need to set spring washers. ● Environmentally friendly trivalent chromate product. Specifications: ● Dimensions (mm) d: M3 ● Dimensions (mm) L: 10 ● Thread pitch (mm): 0.5 ● Strength category: 10.9 ● Surface treatment: trivalent chromate plating ● Thread type: regular ● Head diameter (mm): 5.5 ● Head thickness (mm): 3 ● Hexagonal hole diagonal dimension (mm): 2.5 ● Package: Bolt pack (blister) ● Spring washer (P-2 type) included Material/Finish: ● Steel ● Surface treatment: trivalent chromate finish (white)
