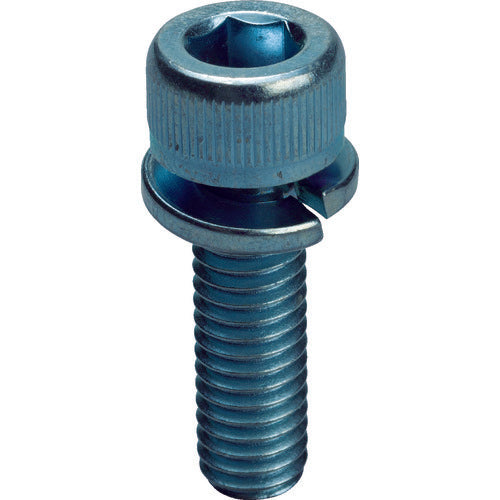

TRUSCO Spring washer assembled hexagon socket bolt, white, M5 x 25, 22 pieces, Y15S-0525, 1 PK

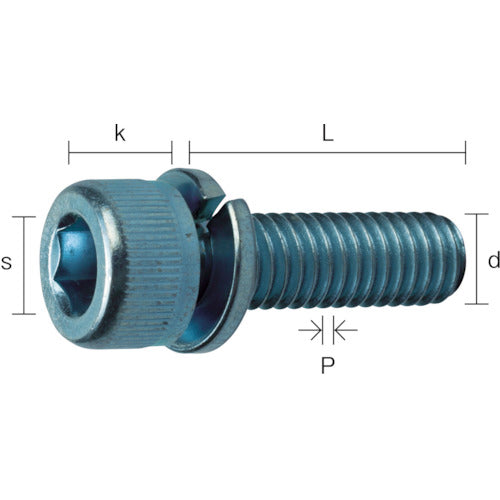

Catalog number: Y15S-0525 Features: ● Eliminates the need to set spring washers. ● Environmentally friendly trivalent chromate product. Specifications: ● Dimensions (mm) d: M5 ● Dimensions (mm) L: 25 ● Thread pitch (mm): 0.8 ● Strength category: 10.9 ● Surface treatment: trivalent chromate plating ● Thread type: regular ● Head diameter (mm): 8.5 ● Head thickness (mm): 5 ● Hexagonal hole diagonal dimension (mm): 4.0 ● Package: Bolt pack (blister) ● Spring washer (P-2 type) included Material/Finish: ● Steel ● Surface treatment: trivalent chromate finish (white)
