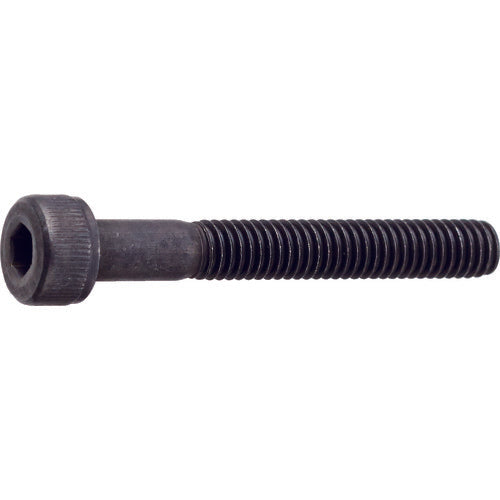

TRUSCO Anti-loosening Hexagonal Socket Bolt Steel Material Half Thread M6 x 35 20 Pieces / Cap Bolt (CAP) Y013-0635 1 PK

Catalog number: Y013-0635 Features: ●The special thread shape increases the reaction force of the thread and distributes stress to provide a strong anti-loosening effect. Specifications: ●Dimensions (mm) d: M6 ●Dimensions (mm) L: 35 ●Thread pitch (mm): 1.0 ●Thread length (mm): 24.0 ●Strength category: 12.9 ●Surface treatment: Black oxide coating ●Thread type: Regular ●Head diameter (mm): 10.0 ●Head thickness (mm): 6.0 ●Hexagonal hole diagonal dimension (mm): 5.0 ●Type: Half thread ●Neck length (mm): 35.0 ●Thread diameter (mm): 6.0 ●Hexagonal hole depth (mm): 3.0 ●Package: Bolt pack (blister) ●Strength category: 12.9 Material/Finish: ●Chrome molybdenum steel (equivalent to SCM435) ●Surface treatment: None (plain)
