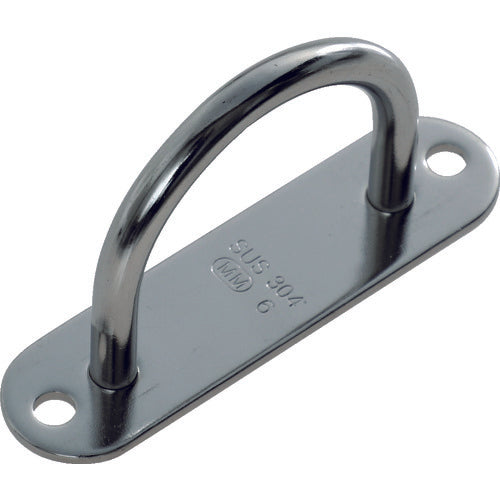

TRUSCO Eye Plate Pad Eye Wide Stainless Steel 5mm 1 piece TPD-5W 1 piece

Catalog number: TPD-5W Features: ●Can be installed even on surfaces with a narrow installation width. ●Please use flat head screws. ●Since the W dimension is large, it can also be used with thick-diameter chains. Applications: ●For installation on posts and walls. Specifications: ●Working load (kN): 0.15 ●A(mm): 15 ●D(mm): 5 ●B(mm): 55 ●H(mm): 29 ●P(mm): 45 ●W(mm): 25 ●d(mm): 4.2 ●T(mm): 2 Material/Finish: ●Stainless steel (SUS304) Note: ●This is a type without a counterbore.
