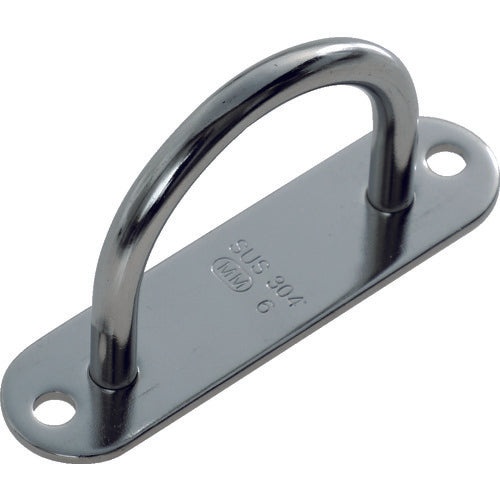

TRUSCO Eye Plate Pad Eye Wide Stainless Steel 6mm 1 piece TPD-6W 1 piece

Catalog number: TPD-6W Features: ●Can be installed even on surfaces with a narrow installation width. ●Please use flat head screws. ●Since the W dimension is large, it can also be used with thick-diameter chains. Applications: ●For installation on posts and walls. Specifications: ●Working load (kN): 0.2 ●A(mm): 20 ●D(mm): 6 ●B(mm): 77 ●H(mm): 43 ●P(mm): 65 ●W(mm): 40 ●d(mm): 5.2 ●T(mm): 2 Material/Finish: ●Stainless steel (SUS304) Note: ●This is a type without a counterbore.
