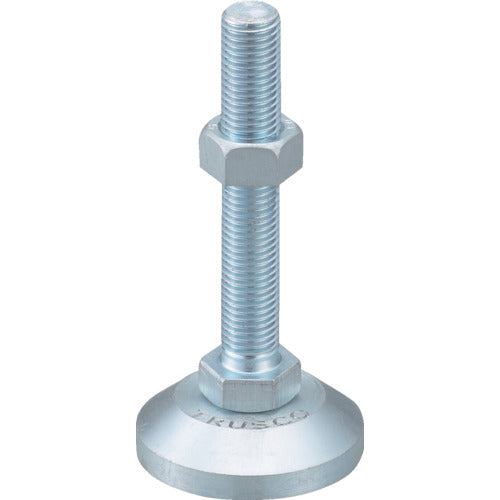

TRUSCO Adjuster Bolt 1200kgf Type Heavy Duty M12x120 Steel NC12X120 1 Piece

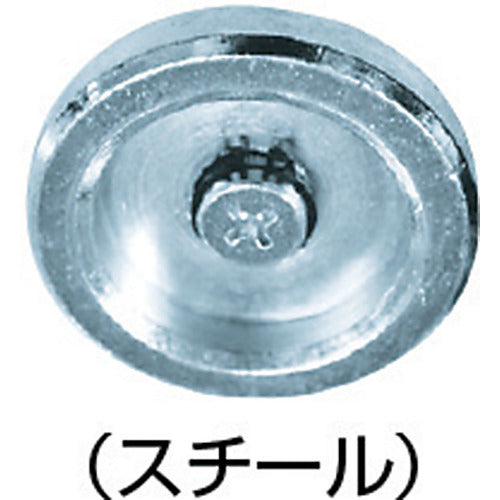

Catalog number: NC12X120 Features: ● The base is cold-formed for strength and can withstand heavy loads. Applications: ● Machine tools, vending machines, conveyors, workbenches, computer racks, control panels, scientific and chemical machines. Specifications: ● Allowable load (kgf): 1200 ● Screw dimensions: M12 x 1.75 ● Screw length (mm): 120 ● Total height (mm): 144 ● Base diameter (mm): 60 ● Allowable load (N): 11760 Material/Finish: ● Screw: General structural carbon steel ● Base: Steel ● Surface treatment: Trivalent chromate finish Note: ● The allowable load is the allowable load of the base.
