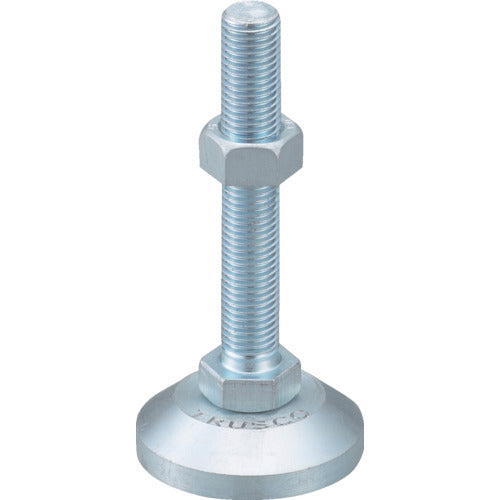

TRUSCO Adjuster Bolt 2500kgf Type Heavy Duty M16x180 Steel NC16X180 1 Piece

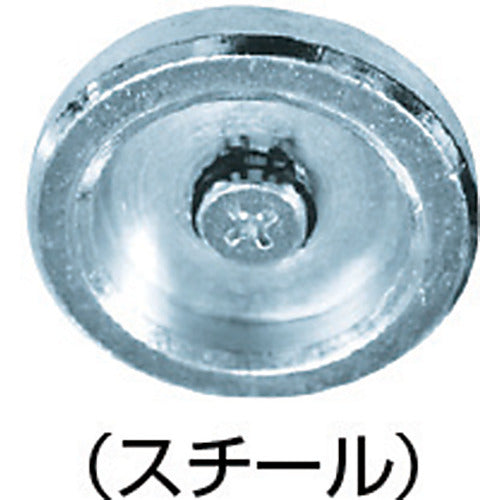

Catalog number: NC16X180 Features: ● The base is cold-formed for strength and can withstand high loads. Applications: ● Machine tools, vending machines, conveyors, workbenches, computer racks, control panels, scientific and chemical machines. Specifications: ● Allowable load (kgf): 2500 ● Screw dimensions: M16 x 2.00 ● Screw length (mm): 180 ● Total height (mm): 206 ● Base diameter (mm): 60 ● Allowable load (N): 24500 Material/Finish: ● Screw: General structural carbon steel ● Base: Steel ● Surface treatment: Trivalent chromate finish Note: ● The allowable load is the allowable load of the base.
