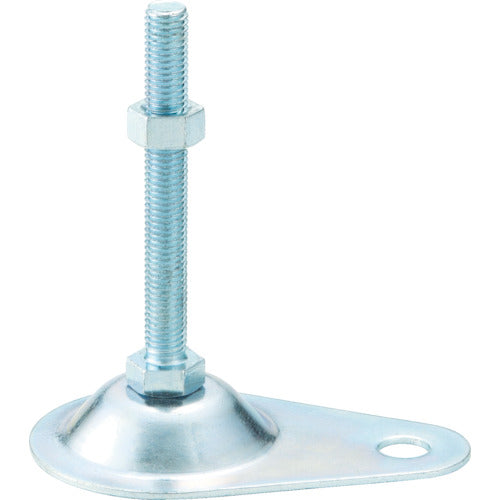

TRUSCO Adjuster Bolt M16 x 180 Steel with Foot Stop Plate TE2-16X180 1 pc

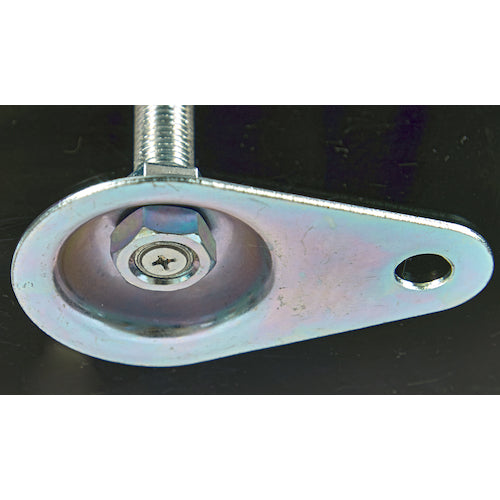

Catalog number: TE2-16X180 Features: ● Comes with anchor holes for fixing to the floor. ● Holes are provided in the base, and it can be fixed to the floor with anchors. Used to prevent the target equipment from moving due to severe vibrations, etc. Applications: ● Machine tools, vending machines, conveyors, workbenches, control panels, scientific and scientific equipment. Specifications: ● Allowable load (kgf): 500 ● Screw dimensions: M16 x 2.00 ● Screw length (mm): 180 ● Total height (mm): 209 ● Base diameter (mm): 75 ● Allowable load (N): 4900 ● Package: Bolt pack (blister pack) ● Recommended anchor size: M12 Material/Finish: ● Screw: Steel ● Base: Steel ● Surface treatment: Trivalent chromate finish
