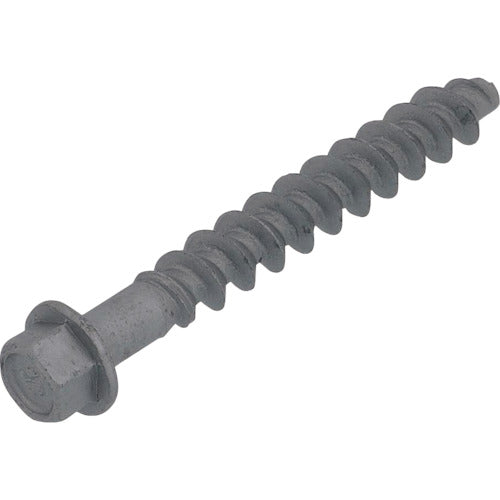

TRUSCO Asphalt Screw Anchor 10X70 (SUS410) 4 Pieces AS-1070 1 PK

Catalog number: AS-1070 Features: ●Screw anchor exclusively for asphalt. ●Easily removable screw anchor. Applications: ●Guide posts for parking lots, etc. ●Bicycle stands. Specifications: ●Screw designation: M10 ●Screw length (mm): 60 ●Total length (mm): 77 ●Drill diameter (mm): 7 ●Maximum tensile load (kN): Approx. 5.8 ●Outer diameter (mm): 10 ●Body length (mm): 77 ●Length (mm): 77 ●Two-sided width dimension (mm): 10 ●Embedded depth (mm): 70 ●Pilot hole diameter (mm): 7 ●Driving depth (mm): 50 ●Nominal dimension (mm) L: 70 ●Flange diameter (mm): 15 ●Head diameter (mm): 15 ●Head height (mm): 7 ●Screw diameter (mm): 10 ●Packed Material/Finish: ●Stainless steel (SUS410) ●Surface treatment: Geomet treatment Caution: ●The strength may vary depending on the asphalt material, thickness, temperature, humidity, and usage environment, so please check before use. ●Do not use a hammer drill when tightening.
