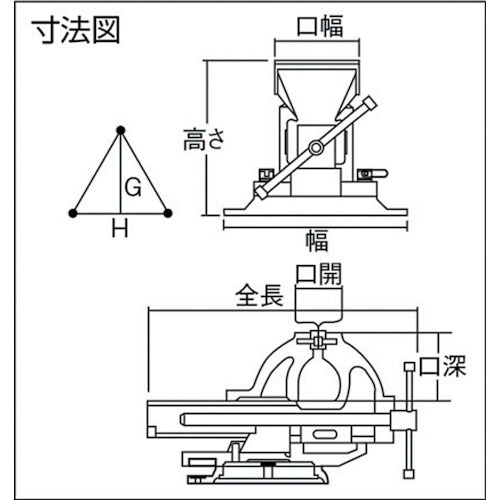

Catalog number: RV-130N Features: ● Made of strong cast iron, it is durable. Specifications: ● Total length (mm): 440 ● Width (mm): 178 ● Height (mm): 227 ● Jaw width (mm): 129 ● Jaw opening (mm): 135 ● Jaw depth (mm): 88 ● Mounting hole dimensions (mm): 18 ● Clamping pressure (kN): 22 ● Type: Applied vice ● Mounting dimensions (mm) G: 135 ● Mounting dimensions (mm) H: 135 ● Round shaft type Material/Finish: ● Body: Cast iron ● Shaft, handle, and jaws: Steel Caution: ● Do not overtighten the handle by hitting it with a hammer, etc. ● Do not insert a pipe or other object into the handle to extend it and overtighten it. ● Do not use a lever to bend the workpiece fixed in the vice, or subject it to excessive impact. ● Damage or failure caused by misuse is not covered by the warranty.
