TRUSCO Aluminum Flexible Duct Inner Diameter Φ185 x 10m TAF-17510 1 pc

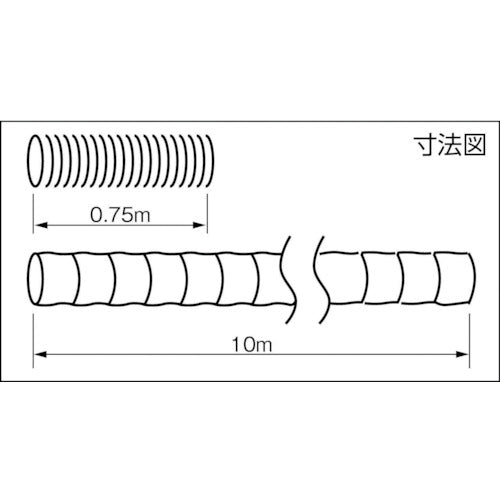

Catalog number: TAF-17510 Features: ●Excellent weather resistance, durability, and workability. ●No air leakage. ●Flexible and flexible, the duct length can be made compact up to 0.75m. Uses: ●Air conditioning intake and exhaust duct. Specifications: ●Length (m): 10 ●Inner diameter (mm): 185 ●Outer diameter (mm): 187 ●Allowable bending radius (mm): 100 ●Nominal (mm): 175 ●Operating temperature range: -5 to 60°C ●Steel wire φ100 to φ300: 1mm φ325 to φ350: 1.2mm Material/Finish: ●Hard steel wire ●Specially laminated aluminum foil Caution: ●The inner diameter of the duct is the inner diameter of the steel wire, and since the base fabric is also stretched on the inside, if you try to insert something with no dimensional difference, the base fabric may get caught and prevent it from entering. ●When inserting, please prepare an outer diameter slightly smaller than the inner diameter of the duct (approximately -5mm).
