TRUSCO Insert Screw E-sert M10X1.5 2.0DNS 10pcs EH-M1015X2.0DNS 1PK

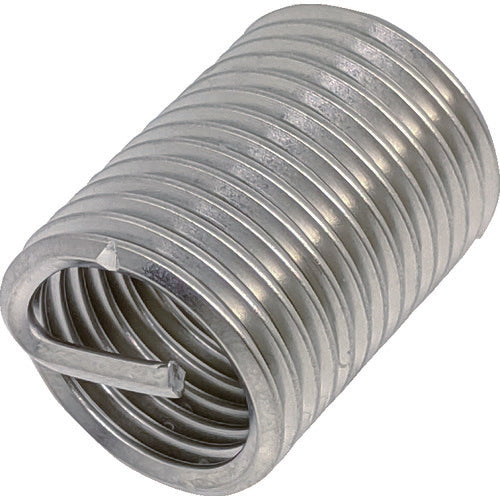

Catalog number: EH-M1015X2.0DNS Features: ● Helical insert made of stainless steel. ● Shaped like a spring made of wound wire with a diamond cross section. Applications: ● For reinforcing female threads in soft base materials such as aluminum and resin. ● For repairing damaged female threads. Specifications: ● Suitable bolt thread: M10 x 1.5 ● Pilot hole diameter (mm): 10.5 ● Thread designation: M10 ● Thread pitch: 1.5 ● Dimensions (mm) L: 20 ● Dimensions (mm) D1: 12.63 Material/Finish: ● Stainless steel (SUS304) Note: ● E-insert is a registered trademark of Tsugami Corporation.
