TRUSCO Insert Screw E-sert M12X1.75 2.0DNS 5pcs EH-M12175X2.0DNS 1PK

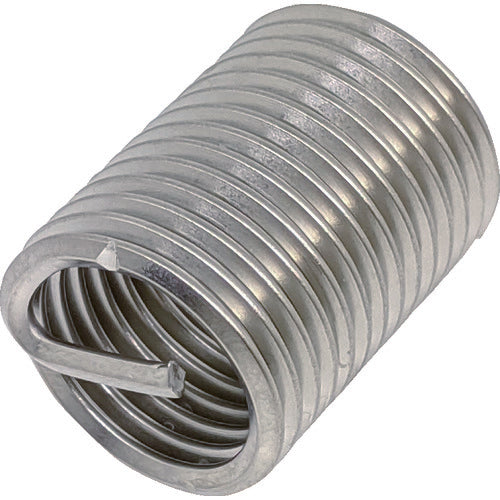

Catalog number: EH-M12175X2.0DNS Features: ●Helical insert made of stainless steel. ●Shaped like a spring made of wound wire with a diamond cross section. Applications: ●For reinforcing female threads in soft base materials such as aluminum and resin. ●For repairing damaged female threads. Specifications: ●Compatible bolt thread: M12 x 1.75 ●Drill hole diameter (mm): 12.5 ●Thread designation: M12 ●Thread pitch: 1.75 ●Dimensions (mm) L: 24 ●Dimensions (mm) D1: 14.98 Material/Finish: ●Stainless steel (SUS304) Note: ●E-insert is a registered trademark of Tsugami Corporation.
