TRUSCO Insert Screw E-sert M16X2.0 2.0DNS 4 pieces EH-M1620X2.0DNS 1 PK

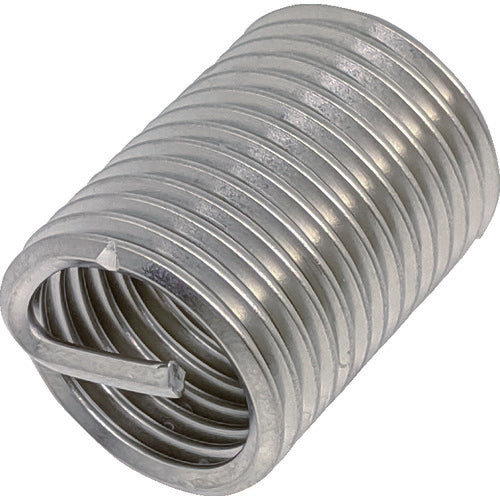

Catalog number: EH-M1620X2.0DNS Features: ●Helical insert made of stainless steel. ●Shaped like a spring made of wound wire with a diamond cross section. Applications: ●For reinforcing female threads in soft base materials such as aluminum and resin. ●For repairing damaged female threads. Specifications: ●Compatible bolt thread: M16 x 2 ●Drill hole diameter (mm): 16.5 ●Thread designation: M16 ●Thread pitch: 2 ●Dimensions (mm) L: 32 ●Dimensions (mm) D1: 19.49 Material/Finish: ●Stainless steel (SUS304) Note: ●E-insert is a registered trademark of Tsugami Corporation.
