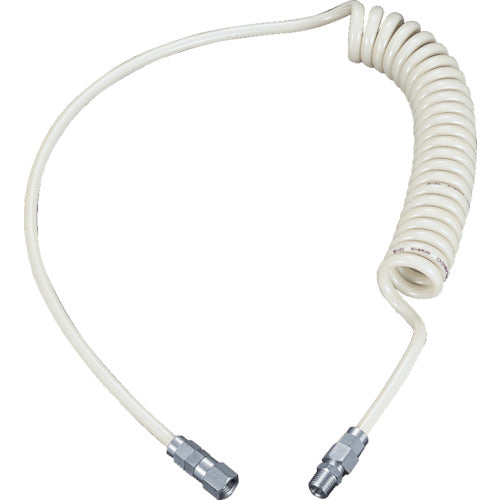

TRUSCO Urethane Coil Hose 5.6m Neo Gray UCH-7NG 1 pc

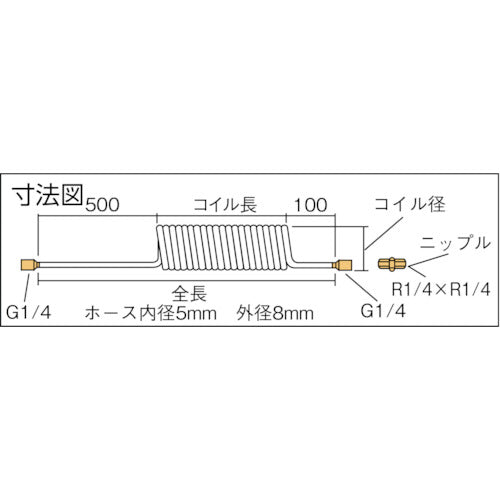

Catalog number: UCH-7NG Features: ●Does not easily become bent and has excellent abrasion resistance. ●Excellent flexibility, elasticity, and stretchability. Also strong. ●Handle part is straight, so no hand hose is required. ●Coiled for a wide range of work. Specifications: ● Coil diameter (mm): 42 ● Color: Neo Gray ● Hose inner diameter x outer diameter (mm): 5 x 8 ● Usage range (m): 5.6 ● Total length (mm): 1200 ● Coil length (mm): 600 ● Outer diameter (mm): 8 ● Inner diameter (mm): 5 ● Fluid used: Air ● Dimensions (mm) B: 500 ● Fluid temperature (℃): -5 to 60℃ ● Operating pressure: 0.8MPa ● Connection fittings: R1/4 male thread, G1/4 female thread, G1/4 universal female thread ● With nipple ● Dimensions D (mm): 100 Material / Finish: ● Polyurethane Caution: ● Do not use in places where the connection fittings may be subjected to impact or get caught on something (such as floor steps or seams in checkered steel plates). This may cause unexpected accidents such as the connection fittings flying out. ● When separating the connection fittings, hold the fittings in your hand. ●After connecting the connecting fittings, gently pull them from both sides to make sure they do not come loose. ●When connecting the fittings, first tighten them by hand as far as they will go, and then use a tool to tighten them about 1/4 turn (90°) to 1/2 turn (180°).
