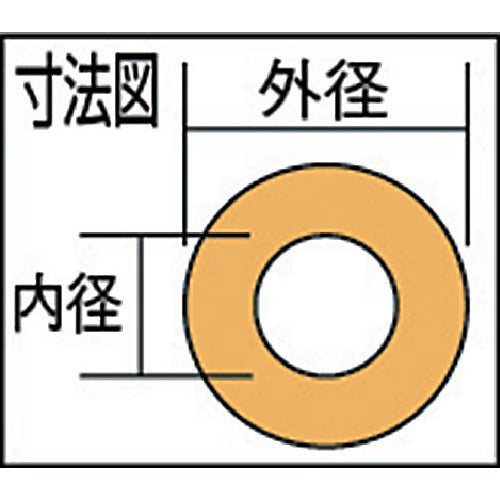

Catalog number: OUP01506-05 Features: ●High spring constant compared to metal springs and rubber cushions, excellent spring force. ●Small size to produce high repulsion force, and the number of pieces used can be reduced. ●When used as a die, it takes only one minute to center, and the die grinding time is reduced. ●Can be set in a small space, shortening installation time and helping to improve productivity. Applications: ●As a jig part. Specifications: ●Color: Yellow ●Length (mm): 500 ●Outer diameter (mm): φ15 ●Inner diameter (mm): φ6.5 ●Usage temperature range (℃): -5 to 70 ●Hardness (Shore A): 90 ●Maximum size (mm): 500 Material/Finish: ●Urethane (thermosetting/ether PPG type)
