TRUSCO Urethane Braid Tube 8.5X12.5 100m Red TOP-8.5-100 1 Roll

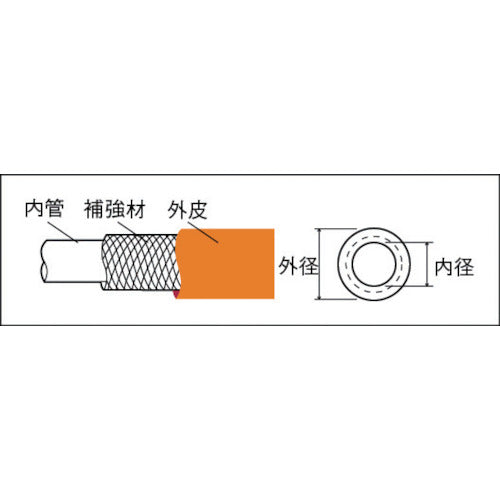

Catalog number: TOP-8.5-100 Features: ●Compared to rubber hoses, it is about 1/3 to 1/5 lighter. ●Excellent oil resistance and pressure resistance, and excellent flexibility even at low temperatures (-5°C). Specifications: ●Color: Red ●Outer diameter (mm): 12.5 ●Inner diameter (mm): 8.5 ●Total length (m): 100 ●Thickness (mm): 2 ●Allowable bending radius: (room temperature) 60mm ●Fluid used: Air ●Fluid temperature: -5 to 60°C (no freezing) ●Operating pressure: 1.5MPa (when used at room temperature) Material/Finish: ●Polyurethane Caution: ●Use couplings designed specifically for blade hoses. Also, be sure to check the operating pressure of the coupling you are using. ●Separate the connecting fittings while holding them in your hand. ●After connecting the connecting fittings, pull them lightly from both sides to make sure they do not come loose. ●Use couplings designed specifically for blade hoses. Also, be sure to check the operating pressure of the coupling you are using. Using the wrong coupling or with the wrong air pressure may damage the hose. ●The normal temperature environment for the operating pressure is approximately 20°C.
